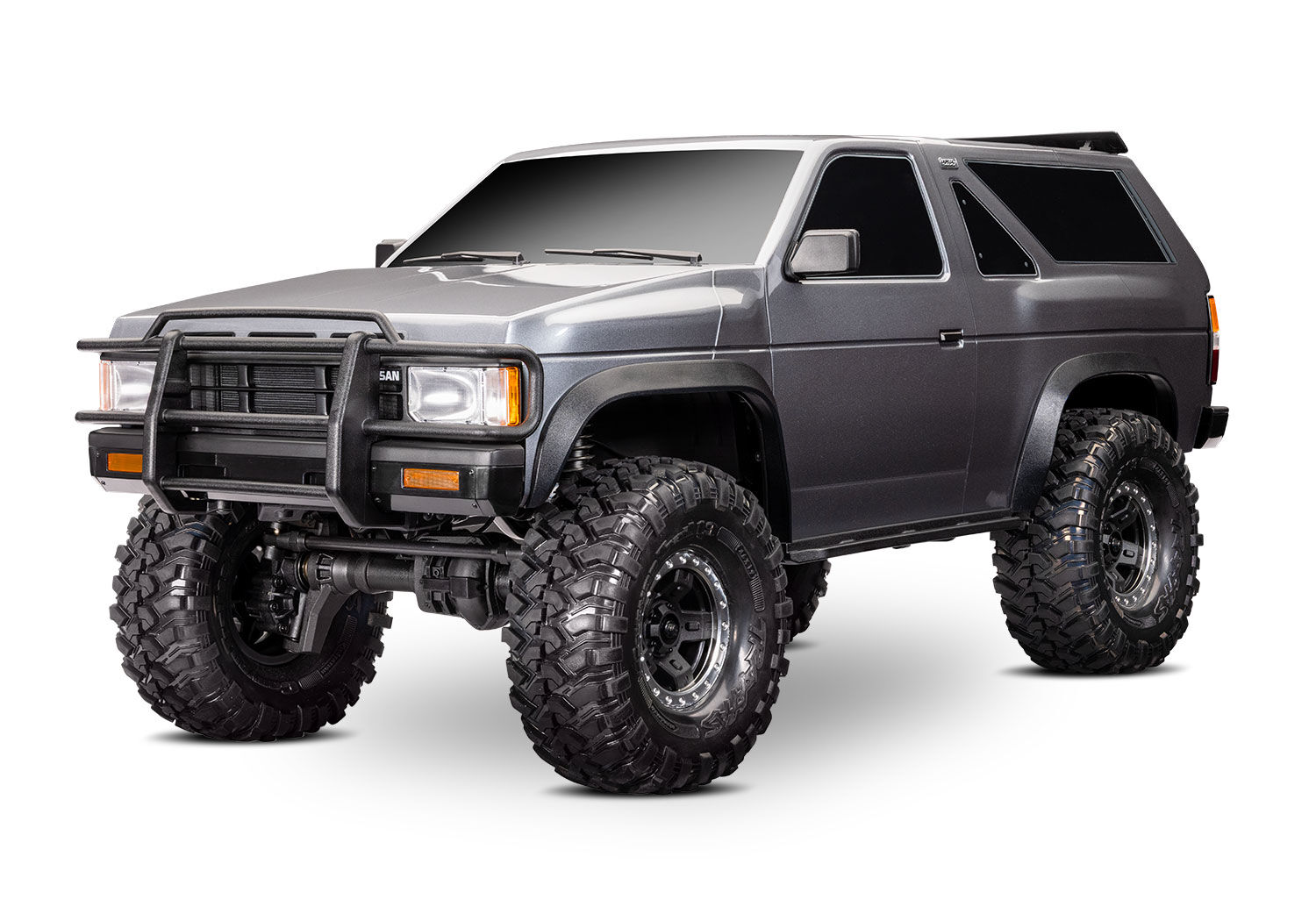

TRAXXAS TRX-4 NISSAN PATHFINDER 4WD SILVER 1/10 SCALE RC ROCK CRAWLER RTR

MODEL 110056-4: TRX-4 Scale and Trail™ crawler with Nissan^® Pathfinder^® Body: 1/10 scale 4X4 trail truck, fully-assembled, waterproof electronics, Ready-To-Drive^®, with TQi™ 2.4 GHz 4-channel radio system, XL-5™ HV speed control, high/low transmission, remote locking differentials, and clipless painted body.

What’s In The Box:

TRX-4, Ready-To-Race model
XL-5 HV waterproof electronic speed control
Titan 21T reverse rotation motor
TQi 2.4 GHz radio system with cruise control
High quality maintenance tools

What You’ll Need:

Batteries
TRX-4 accepts a wide variety of NiMH (4–7 cell) and LiPo (2s–3s) batteries.
Charger
Traxxas EZ-Peak^® Live charger is recommended for easy and fast charging performance (model 2971).
AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.

Officially Licensed Nissan^® Pathfinder^®Clipless Body
- Clipless body holds tight on the trail, but releases in seconds
- Smooth body lines uninterrupted by body clips
- Scale details: grille, black bumpers, push bar, rear spoiler, side mirrors, door handles, and wipers
- Full composite wheel wells and floor pans
Trail-tuned XL-5™ HV Waterproof Electronic Speed Control
- Five drive profiles
  - Sport Mode — forward / brake / reverse
  - Race Mode — forward / brake / no reverse
  - Training Mode™ - 50% forward / 100% brake / 50% reverse (patented)
  - Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
  - Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
- Traxxas EZ-Set^® one-button setup
- Large, efficient heat sink
- Wide voltage latitude 6–7 cell NiMH, 2–3s LiPo
Titan^® 550 Motor
- Powerful Titan 21T reverse rotation motor with internal cooling fan
- Precision, preset gear mesh adjustments
- Motor retention separate from gear mesh
Portal Axles
- Increase ground clearance
- Eliminate torque twist
- Steel gears
- Improve axle geometry and reduce strain on driveshafts

TQi™ 2.4 GHz Radio System
- 4-channel transmitter
- 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
- Compatible with optional Traxxas Link Wireless Module (6511) to access full Traxxas Link app functionality (sold separately)
- Automatically stores and loads settings for up to 30 Traxxas Link enabled models
- Exclusive Cruise Control feature for extended trail driving
- Patented waterproof receiver box with easy-access plug
Rigid Steel Frame
- 1.5 mm thick steel frame rails increase torsional rigidity
- Innovative design allows four wheelbase positions (300 mm, 312 mm, 324 mm, 336 mm)
- Adjustable rear shock tower positions for SWB and LWB configurations
- Rugged rock rails adjust for width
- Wire routing clips integrated into frame rails
Innovative Battery Compartment
- Hinged battery strap allows quick and easy battery access
- No pins to lose
- Accommodates different height batteries
- Accepts full-size long battery packs
- Integrated compartment accepts smaller 1/16 scale batteries
- Secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap)
Driveline
- Full-time shaft driven 4-wheel drive
- Tough 6 mm stub axles
- Steel front CV driveshafts
- Hardened steel rear axle shafts
- Remote locking steel gear differentials with cable-actuation
- Steel transfer case gears

Transmission
- Two speed high/low range with remote shifting
- Dual horizontal shafts
- Twin friction plate slipper clutch
- Easily removed for servicing
Steering
- Chassis mounted 2075X metal gear digital servo
- Superior 45° steering angle
- Direct steering (no servo saver)
- Steering geometry corrected for bump steer
Suspension
- Front — 3 link with panhard
- Rear — Triangulated 4 link
- Heavy-duty rod ends with steel hollow balls
- 5 mm diameter steel link rods with 4 mm threaded ends
Aluminum GTS Shocks
- Oil-filled coilover GTS shocks
- Silver-anodized aluminum bodies
- Threaded bodies with collars easily adjust ride height
- Silky smooth damping for the toughest trails
- O-ring cap seal and dual X-ring shaft seals
Wheels and Tires
- 1.9" black wheels with chrome beadlock trim
- Pre-mounted 1.9″ Canyon Trail tires with trail-tuned foam inserts
- Trail tuned S1 rubber compound
- 12 mm steel hex
Sealed Ball Bearings
Hex hardware with rust-resistant black oxide coating

MODEL SPECS

Name:	TRX-4 Nissan Pathfinder
Type:	Trail / Crawler
Skill Level:	1
Scale:	1/10
Weight:	6.78 pounds (3.08 kg)
Length:	22.72 inches (577 mm)
Width:	9.78 inches (249 mm)
Track:	9.78 inches (249 mm)
Height:	9.49 inches (241 mm)

Wheelbase:	12.28 inches (312 mm)
Center Ground Clearance:	3.14 inches (80 mm)
Driveline:	Shaft-driven 4WD
Transmission:	2-speed high/low, remote shifting
Differential Type:	4 gear, remote locking
Gear Pitch:	32 pitch
Steering Servo:	2075X metal gear, digital high-torque waterproof
Radio System:	TQi™ 2.4 GHz 4-channel transmitter with 6533 receiver
Battery Compartment Specs:	159 mm X 47 mm X 23 mm

MOTOR SPECS

Name:	Titan^® 21T Reverse Rotation
Motor Type:	High-torque brushed motor
Weight:	8.47 ounces (240 g)
Length:	3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length
Diameter:	1.53 inches (39 mm)
Shaft Size:	3 mm
Connector Type:	Bullet

ESC SPECS

Name:	XL-5™ HV
ESC Type:	Brushed
Case Size:	1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm)
Weight:	2.60 ounces (74 g)
Motor Connectors:	Bullet
Battery Connectors:	Traxxas High-Current Connector
Power Wire:	14 gauge
