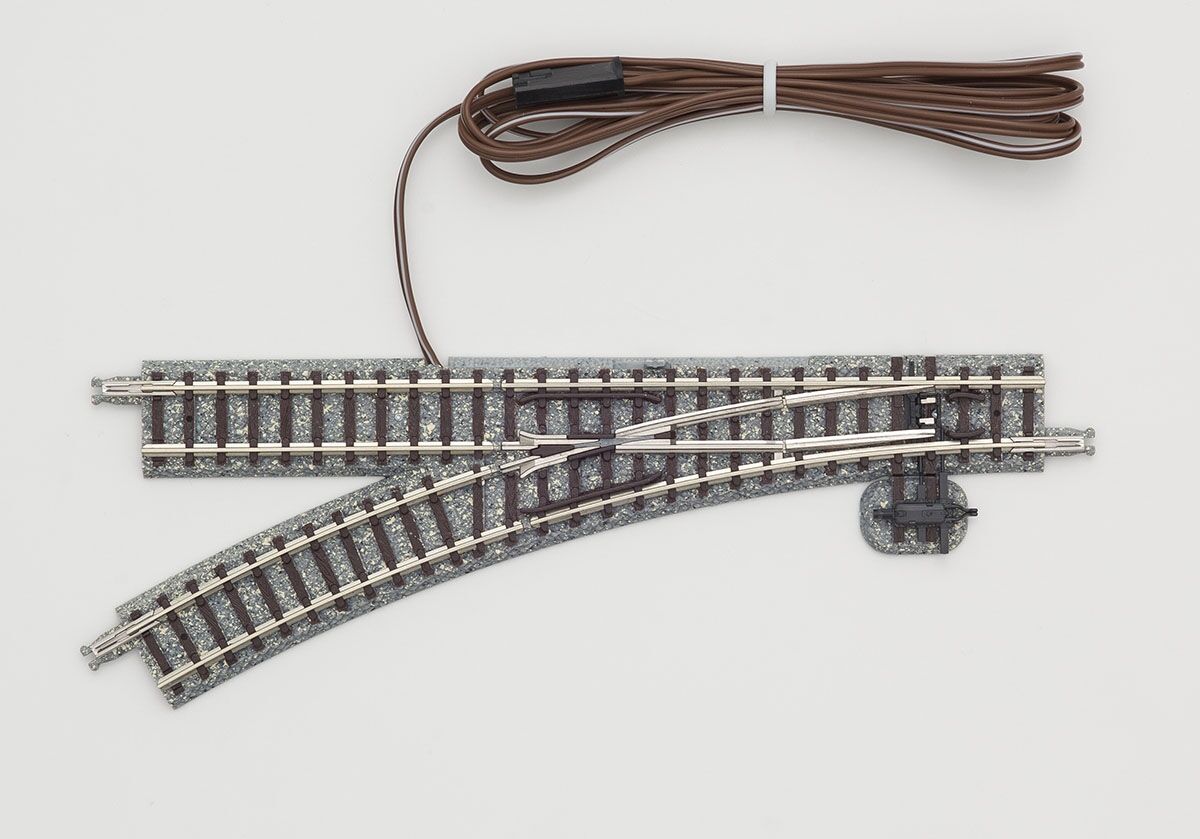

The N-PR280-30(F) is an electric point with a length of 140mm that branches off to the right and the N-PL280-30(F) to the left with a 30-degree curve radius of 280mm.It is fully selective and can also be used as a spring point.

●Compatible with conventional Tomix rails
●Rails are joined with claws
●Improved joiners are used for the joiners
●Operates in combination with Point Control Box N and Power Unit N
●One Finetrack common point N drive unit is built into the trackbed
●A fully selectable system in which the +/- current to the two rails can be completely switched in two directions using two built-in contacts on both rails, allowing for simple electrical wiring even when operating in reverse or installing complex points
●Branched to 74mm double track spacing when combined with two existing C280-15 rails
●Using two rails creates a single crossover track with a double track spacing of 74mm at a distance of 280mm
●Gaps are achieved by replacing with insulated joiners (sold separately)
●Includes dummy point motor, spring point sign, manual switch, sign stickers, etc.

SKU TMX01274
Brand TOMIX
