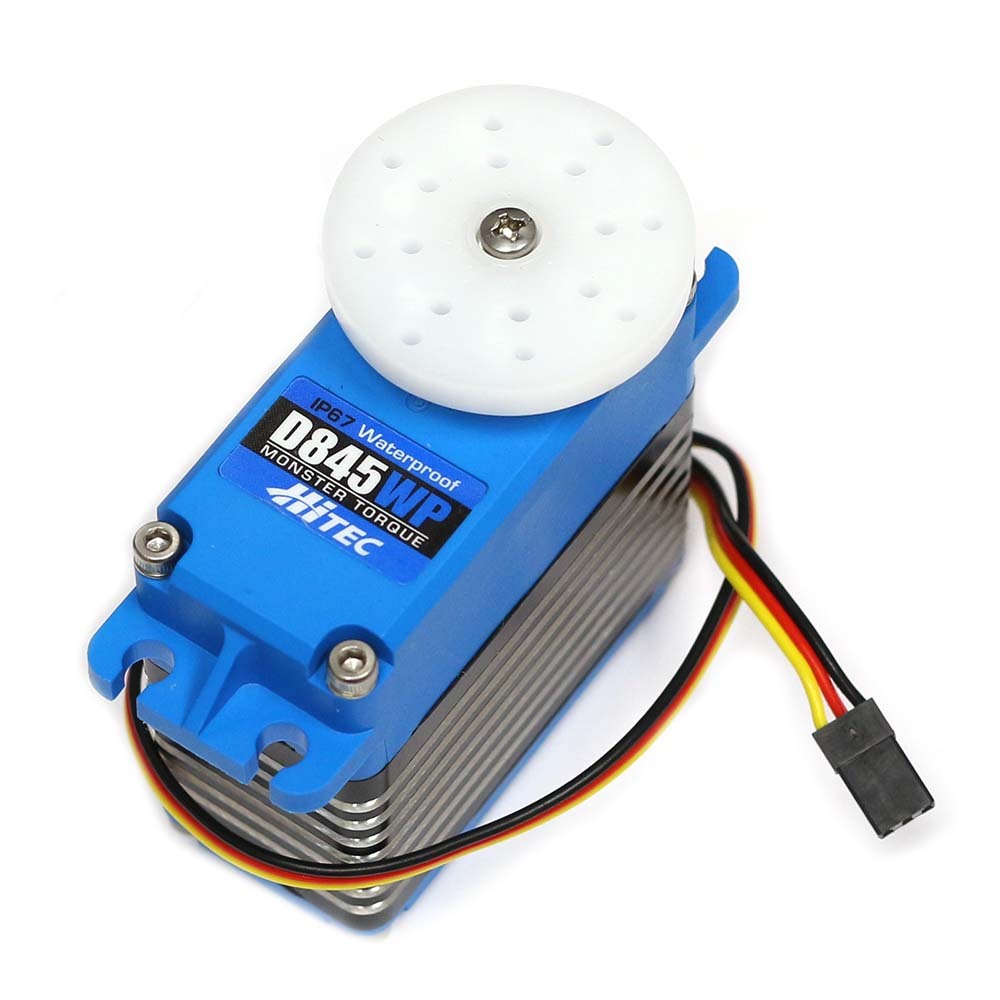

The D845WP servo is an IP-67 rated servo capable of being truly waterproof, dust resistant, and ready for 1/5th-scale Rock Crawlers and Off-Road Trucks. As with Hitec's entire “D” line, this technologically advanced servo is powered by our 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter) industrial science and possess Smart Sense engineering with a rapid, high-resolution response. The unprecedented programmability and wide-voltage capabilities deliver the most progressive, leading-edge performance for all your radio control needs. With incredibly durable steel gears, dual ball bearing and hardened steel output shaft, the high-end performing D845WP produce the mighty torque and reliability required to take bashers to the next level.

Programmable Functions

  • End Point Adjustments

  • Direction

  • Fail-Safe

  • Dead Band

  • Speed (Slower)

  • Soft Start Rate

  • Overload Protection

  • Data Save / Load

  • Program Reset

  • Programmable PWM Digital Amplifier
  • 32-Bit MCU with 12-Bit ADC Circuitry
  • 4096 Resolution
  • 1M Cycle Long Life Potentiometer
  • Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
  • Dual Ball Bearing Supported Output Shaft
  • 15-Tooth Output Spline
  • Coreless Metal Brush Motors
  • Nylon Reinforced Plastic Upper and Lower Case
  • Diamond Cut Aluminum Heat Sink Center Case
  • IPD 67 Rated Water Resistant and Waterproof Proof Case

Specification Details
Size Category Standard
Type Digital
Torque 451 oz-in @ 4.8V562 oz-in @ 6.0V694 oz-in @ 7.4V
Speed 0.26 sec @ 4.8V0.21 sec @ 6.0V0.17 sec @ 7.4V
Dimensions (W × L × H) 2.60 × 1.26 × 2.44 in(66.0 × 32.0 × 62.0 mm)
Bushing / Bearing Dual Bearings
Gear Type Metal
Gear Material Titanium
SKU 669962368452
Brand HITEC
Shipping Weight 1.0000kg
Shipping Width 0.120m
Shipping Height 0.100m
Shipping Length 0.250m
Shipping Cubic 0.003000000m3
Type HOBBIES-HITEC
