Packaging Includes:

Motor Gear 25T-1pcs
5x5 Screw Shaft-1pcs
Spur Gear 33T M1.5-1pcs
Cush Drive Input Shaft-1pcs
Bearing 6x13x5-1pcs
shim 6x8x3.5-1pcs
shim 6x8x7.5-1pcs
Set Screws 5x5-1pcs
Aluminum 7075 Mount-1pcs

Product major function & usage:
Made of 40CR Carbon Steel, stronger than the original gear, wear-resistance and better transmission.

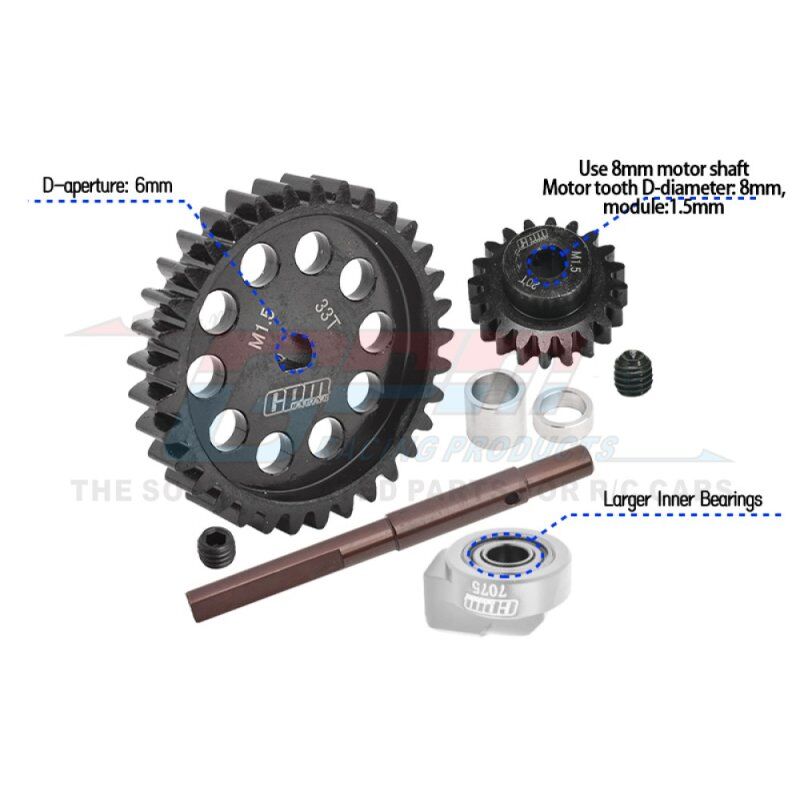

The upgraded 40Cr Carbon steel Spur Gear 33T M1.5 and large gear shaft, bearing and aluminum 7075 fixed mount bring out three-point support, which is better than the original two-point support in stability and transmission effect.
Motor tooth diameter: 8mm, D-shaped motor gear hole, module: 1.5mm, number of teeth: 20T, tooth surface width: 8.5mm, Outer diameter: 33mm
Spur Gear 33T diameter: 6mm, D-shaped motor gear hole, module: 1.5mm, number of teeth: 33T, tooth surface width: 14mm, Outer diameter: 52.4mm
Suitable Model:
TRAXXAS 1/6 4WD XRT 8S-78086-4
TRAXXAS-1/5 X-MAXX 6S MONSTER TRUCK-77076-4
TRAXXAS-1/5 X-MAXX 8S MONSTER TRUCK-77086-4
SKU 4894538396171
Brand GPM
