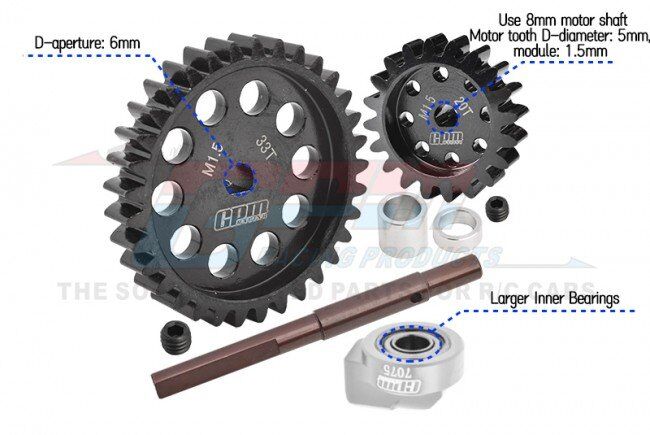

Packaging Includes:
Motor gear 20T-1pc
5x5 Screw shaft-1pc
Spur gear 33T M1.5-1pc
Cush drive input shaft-1pc
Bearing 6x13x5-1pc
shim 6x8x3.5-1pc
shim 6x8x7.5-1pc
Set screws 5x5-1pc
Aluminum 7075 mount-1pc

The upgraded 40Cr Carbon steel Spur Gear 33T M1.5 and large gear shaft, bearing and aluminum 7075 fixed mount bring out three-point support, which is better than the original two-point support in stability and transmission effect.
Motor tooth diameter: 5mm, D-shaped motor gear hole, module: 1.5mm, number of teeth: 20T,tooth surface width: 9mm,Outer diameter: 33mm.
Spur Gear 33T diameter: 6mm, D-shaped motor gear hole, module: 1.5mm, number of teeth: 33T,tooth surface width: 14mm,Outer diameter: 52.4mm.

Suitable Model:
TRAXXAS-1/5 4WD X-MAXX 6S
TRAXXAS-1/5 ELECTRIC 4WD X-MAXX 8S MONSTER TRUCK
TRAXXAS-1/6 4WD XRT 8S-78086-4

SKU 4894538381580
Brand GPM
