Quick Fit Check

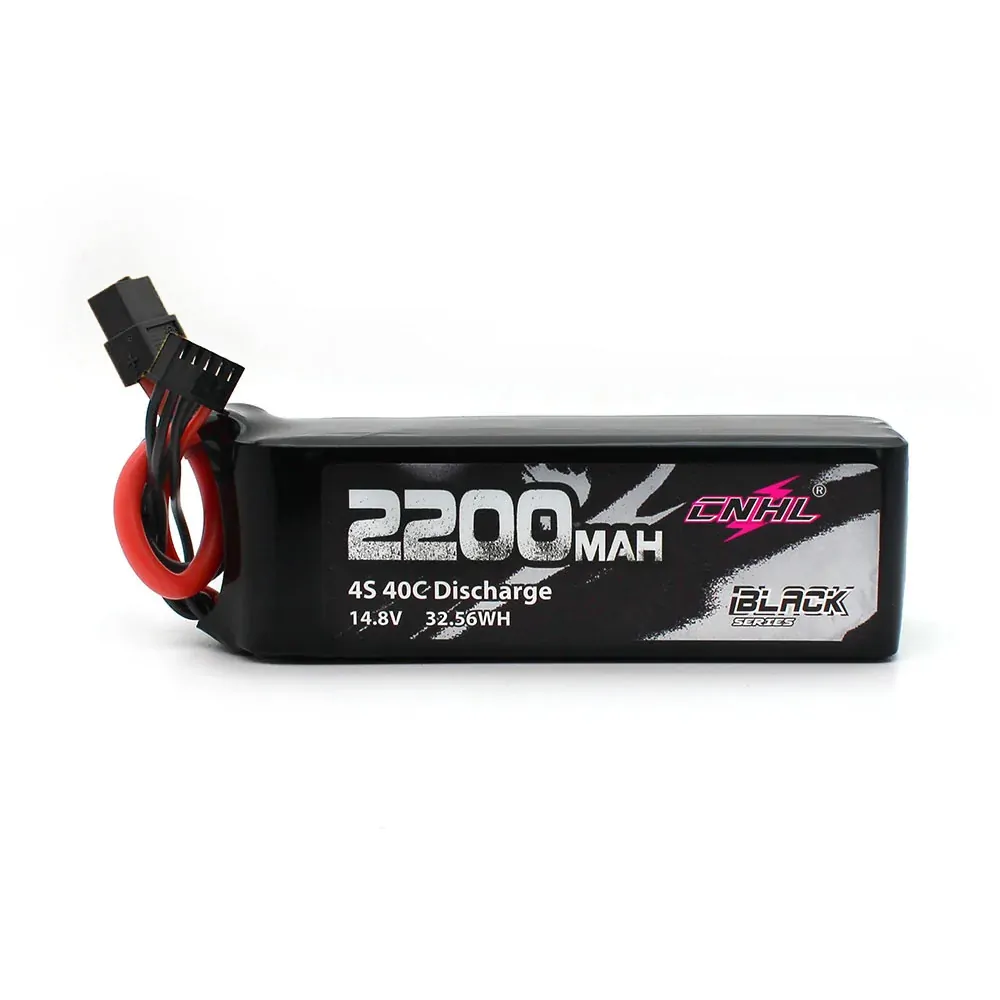

The CNHL Black Series 2200mAh 4S 14.8V 40C LiPo Battery with XT60 Plug is a standard-voltage 4S aircraft battery for RC planes, warbirds, STOL models, FPV platforms and compact EDF jets that use the widely adopted 2200mAh battery class.

Before ordering, confirm the complete battery dimensions, weight, connector and center-of-gravity range. Matching only the voltage and connector does not guarantee a correct installation.

Check Item Your Model Should Match This Battery
Cell Count 4S standard LiPo system 14.8V nominal / 4S1P
Maximum Voltage ESC supports a fully charged standard 4S LiPo 16.8V fully charged
Connector XT60 battery connection XT60 Plug
Battery Space Compartment accepts a conventional 2200mAh 4S pack 106 × 34 × 28mm
Installed Weight Aircraft balances correctly with this battery mass Approx. 211g
Power Demand Power system operates within the battery and connector limits 40C continuous / 80C burst

This battery is a practical choice when the aircraft manufacturer recommends a conventional 4S 2200mAh pack and the battery compartment accepts its 106mm length and approximately 211g weight.

Product Specifications

Capacity 2200mAh
Nominal Voltage 14.8V
Cell Configuration 4S
Fully Charged Voltage 16.8V / 4.20V per cell
Discharge Rate 40C Continuous / 80C Burst
Maximum Charge Rate 5C
Output Connector XT60 Plug
Balance Connector JST-XH 5-Pin
Dimensions (L × W × H) 106 × 34 × 28mm
Approx. Weight 211g
Wire Gauge 12AWG
Stock Number 220404BK
SKU 220404BK
Brand CNHL BATTERIES
Shipping Width 0.060m
Shipping Height 0.050m
Shipping Length 0.130m
